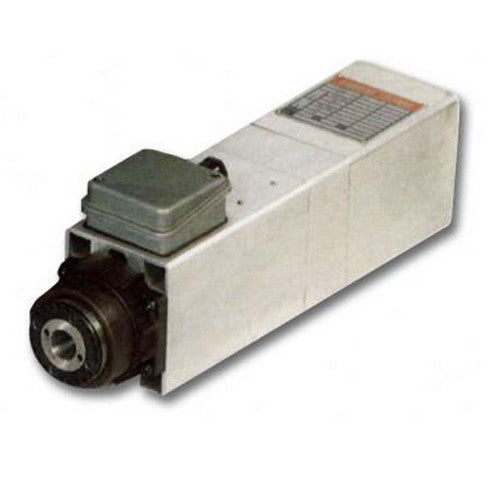

Colombo RV 110/22 10hp ATC Spindle Motor-220V/380V

Product Description

Giordano Colombo RV 110/22 ISO 30 automatic tool change (ATC) air-cooled electric spindle motor, 220V/380V.

• Part #GC301453-10,DF

Colombo RV 110 Spindle Motors – Fan Cooled

Giordano Colombo automatic tool changer spindles are designed for applications on machines working wood, plastic, aluminum, light alloy, steel, glass and also marble. The frame is obtained from extruded aluminum bar or from heat treated special alloy aluminum ingot. The bearings are precision angular contact type, with steel or ceramic balls and life lubrication with special grease for high speeds.

Colombo RV Series Mechanical Specifications:

• Taper: ISO 30
• Tool Clamping System: Collet ISO 30
• Front Bearings Type: Angular steel contact bearings
• Rear Bearings Type: Angular steel contact bearings
• Bearings Lubrification: Kluber Isoflex Topas NB52 or Lubcon Turmogrease Highspeed L252
• Front Sealing System: Compressed air
